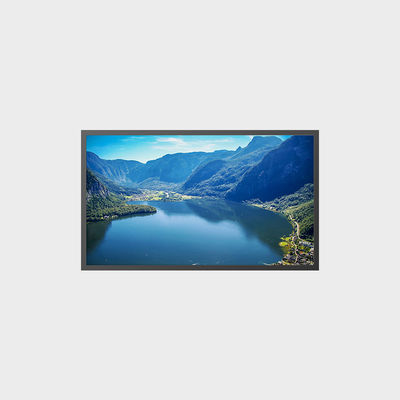

24 inch LCD Display With LVDS Interface Support High Brightness Customization LCMA-RX0240GA01-C100
Contacteer me voor vrije steekproeven en coupons.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Paneelgrootte | 24" | Oplossing | 1920*1080 |
|---|---|---|---|
| Helderheid | 1000 (Type.) | Beeldverhouding | 16: 9 |
| Actief gebied | 531.36*298.89mm | Overzichtsdimensie | 556 x 323,2 x 17 mm |
| Markeren | 24 inch LCD display with LVDS interface,high brightness LCD display customization,LCMA-RX0240GA01-C100 LCD module |
||
Productomschrijving
24 inch LCD Display With LVDS Interface Support High Brightness Customization LCMA-RX0240GA01-C100
Product Specifications
| Attribute | Value |
|---|---|
| Panel Size | 24" |
| Resolution | 1920*1080 |
| Brightness | 1000 (Typ.) |
| Aspect Ratio | 16:9 |
| Active Area | 531.36*298.89mm |
| Outline Dimension | 556*323.2*17mm |
Product Features
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C-80°C
- High shock resistance and stability
Applications
- Bus Stop Station
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising
- Attractions Information Inquiry Machine
- Community Information Board
Technical Specifications
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size (inch) | 24 |
| Model | LCMA-RX0240GA01-C100 |
| Brightness | 1000 |
| Resolution | 1920*1080 |
| Active Area | 531.36*298.89 |
| Overall Size | 556*323.2*17 |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 5000:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20~70℃ |
